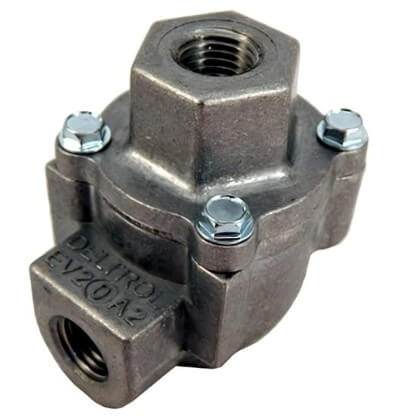

Deltrol EV20-A2 1/4″NPT Quick Exhaust Valve

Original price was: $48.90.Current price is: $35.32.

SKU: DL00591C Category:

EV20-A2 EV20A2 1/4″NPT Quick Exhaust Valve

Download EV20-exhaust-valve Datasheet PDF

(Functional Replacement for: Norgren T70A2800)

Factory Direct Shipping not available. Ships from AHE location only.

STOCK STATUS: 2

Factory Stock: Factory Direct Shipping Not Available

This Product Is Not Available For Export.
California Shipping Is Not Available.
- -
! IMI NORGREN / IMI BIMBA NOTICE! All Orders below $350 do not qualify for Factory Direct Shipping. (This includes Expedite/Red Request Orders) All IMI Norgren/IMI Bimba Orders below this amount will be brought in to an AHE facility and then shipped.
- -
Lincoln SKF Expedite Request Orders must be in before 11:30 AM EST. Same day shipping is not guaranteed.
- -
Please Review Below:
Please Notice: Item(s) in our (AHE) stock that qualify usually ship out the same day as long as the order is received before 1:00 PM EST (Monday-Friday), orders received after 1:00 PM are not guaranteed same-day shipment. Orders received after 1:00 PM EST on Friday usually ship the following Monday. ( Stock is not Guaranteed - Please Request Quote or call for availability if urgent) If you have questions regarding stock availability please call us at 1-800-277-4466 before placing an order.
In Stock: The item is in stock at our warehouse and qualifies to usually ship out the same day as long as the order is placed before 1:00 PM EST. Same day shipping is not guaranteed.
Factory Stock: The item may be available from one of our support factory warehouses. Most items generally ship within a few days as long as the item is in stock. STOCK IS NOT GUARANTEED. Many items do not qualify for factory direct shipping. If no stock is shown that means the factory could be out of stock, please call for the lead time. Lincoln SKF Expedite request orders must be in before 11:30 AM EST. Same day shipping is not guaranteed.
Call to Check Availability: The item is listed as generally available to order from one of our supporting warehouses, STOCK IS NOT GUARANTEED. If a rush item is needed, please call and check the item lead time before placing an order.
Out of Stock: Item is discontinued, back-ordered, or limited stock is available. Please call to check stock availability.
Order Shipping: Orders with multiple items generally ship as complete order unless otherwise specified. Items not in stock at time of order may take extended time to process and ship. Same day shipping is not guaranteed.
Order Cancellation: Items not kept as our Regular Stock are considered Special Order or Non-Stock items. Please note that once an order is placed, it may not always be possible to cancel the order.
Returns and Refunds: Please notice, some items may not be refundable or returnable. All Cylinders, Electrical Components and Excess Inventory items are not returnable/refundable. Shipping/Freight charges are not refundable. 15% or more Re-Stock Fee May Apply. Please contact us before placing an order if this is of concern.
C.O.C. & Conformity/Compliance: As We Do Not Export, certain certificates such as Certificate of Conformity may not be available or offered.
Shipping Areas: Please be advised, We Cannot Export and Cannot ship to California. Must ship to other USA states.

Description

Description

Deltrol’s quick exhaust valves provide fast dumping of exhaust air at the cylinder, eliminating the need for large selector valves ordinarily required to accommodate exhaust air moving back through the pneumatic system. Substantial front end savings and better operating efficiency result from the use of smaller air system components. In addition, smoother, faster cylinder operation and wider application of air-powered motions are obtained.

The quick exhaust valve has been designed with smooth, over-size internal passages which afford unrestricted flow and prevent clogging due to contaminated air lines. The diaphragm is also an exclusive Deltrol design, assuring instantaneous and complete venting of exhaust air from cylinders, air presses and other air operated equipment.

Features and Benefits
  • Instantaneous dumping of air allows use of smaller valves and piping
  • Increases system efficiency and speeds
  • Cost effective solution
Specifications
Max Operating Pressure (psi)
125
Max Operating Pressure (bar)
9
Cv Factor
2.33
Port Size
1/4″, 3/8″
Port Type
NPTF
Material
Aluminum
Recommended Operating Tempature Range (°F)
0 to +250
Recommended Operating Tempature Range (°C)
-18 to +120
  • Operating Pressure range
    • 20 to 125 psi (1.4 to 8.6 bar)
  • Operating Temperature range
    • Buna N (Standard): 0° to +250° F (-18° to +120° C)
    • Viton: 0° to +400° F (-18° to +204° C)
  • Flow rating
    • Inlet Co-Efficient (Cv Factor) = .50 to 5.32
    • Exhaust Co-Efficient (Cv Factor) = 1.0 to 7.84
  • Threads
    • NPTF
  • Materials
    • Body, Bonnet: Die Cast Aluminum
    • O-Ring: Buna-N, Viton
    • Diaphram: Buna-N, Viton
    • Screws: Zinc Plated Steel

Download EV20-exhaust-valve Datasheet PDF



Details

Weight .5 lbs
Dimensions 4 × 4 × 4 in
