Description

Data for ESO2H

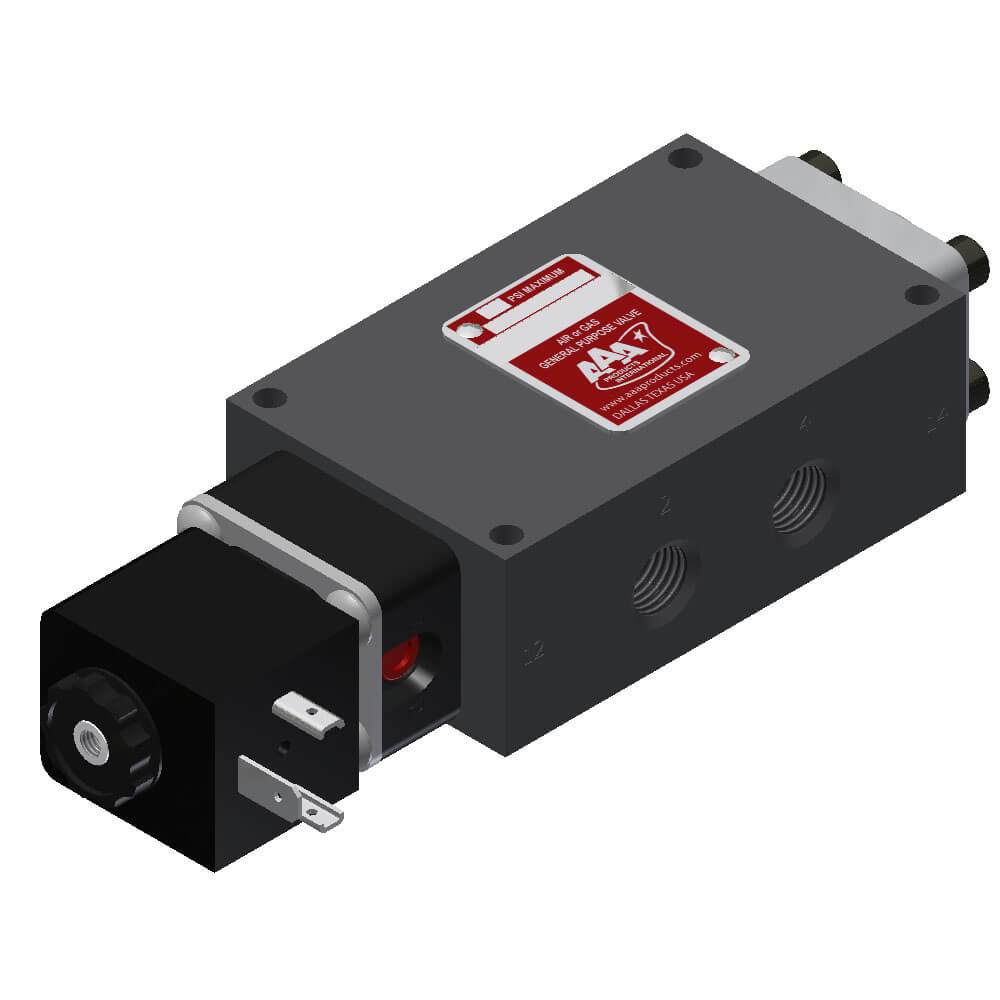

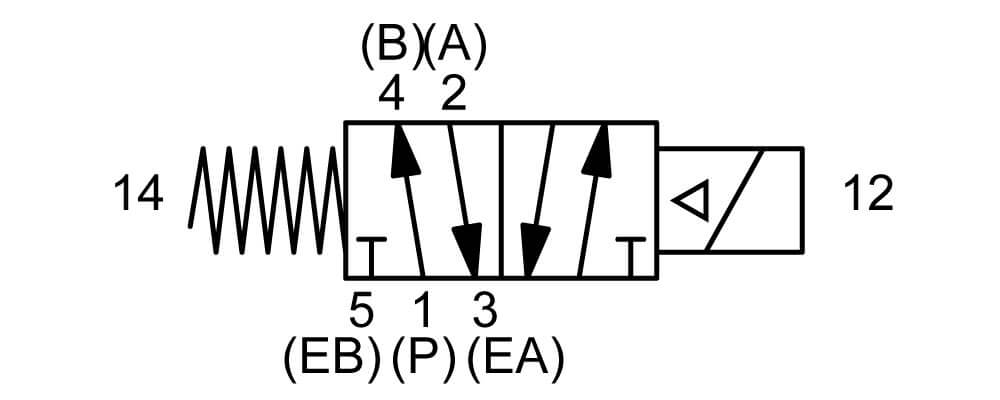

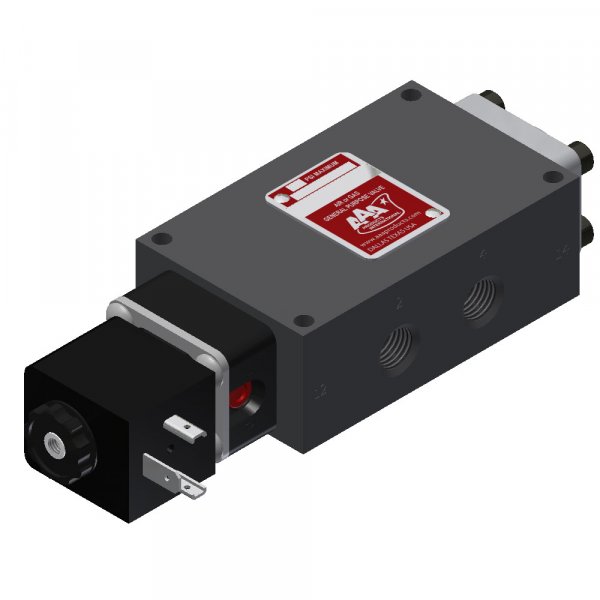

The ESO2H is a 1/4″ NPTF side ported, 2 position, spring return, solenoid operated valve. The spool is shifted by 50 to 150 psi internal pilot air derived from pressure in port 1 when the solenoid is energized. 50 to 150 psi must be maintained on port 1 to keep the spool shifted while the coil is energized. The spool is spring returned when the solenoid is de-energized. See additional information on solenoid valve operation. Coil is a 30mm wide, high temperature coil with ISO 4400 connector pattern. Coil requires an ISO 4400 style DIN cap. Standard voltage is 120/60, indicate other voltages (i.e. 12VDC). Additional voltages available on special order.
Pressure: 50 to 150 psi on the main body of the valve when solenoid is internally piloted.
Vacuum: The valve cannot be vacuum operated when the solenoid is internally piloted.
Temperature: -20°F to 180°F ambient. Caution: If it is possible that the ambient temperature may fall below freezing, the medium must be moisture free to prevent internal damage or unpredictable behavior.
Mounting: The valve can be mounted in any orientation.
O-Rings: Viton.
Solenoid Seat: Viton.
Materials: Black anodized 6061-T6 aluminum body, hard anodized aluminum spool, A380 aluminum end cap, Viton solenoid seat, composite gaskets, steel fasteners.
Flow: 73.9 SCFM, 1.6 Cv
Repair Kit: ERKV-3
SPARE COIL: V-603-1
3-Way or 5-Way: This valve is basically 4-way, it must be configured for external pilot (Option ‘Z’) for 5-way service by using ports 2 or 4 as an inlet, or 3-way service by plugging the unused port 2 or 4.
Fluid Media: Soft seal models are made for air, vacuum, and gases compatible with component materials. They should not be used with liquids.
Weight: 1.6 lbs ± 5%.

Details

Weight 1.6 lbs
Dimensions 5 × 3 × 3 in
