HY4 Manual Lever Valve AAA Products

Original price was: $245.90.Current price is: $218.61.

SKU: AA19140C Category:

HY4 Manual Lever Valve AAA Products

*Factory Direct Shipping to TN Only when not in our stock*

STOCK STATUS: Call to Check Availability 1-800-277-4466

Factory Stock: *Factory Direct Shipping to TN Only when not in our stock*

Typical Factory Lead Time (If No Stock): 1 - 3 Weeks Estimated

Request Quote
This Product Is Not Available For Export.
California Shipping Is Not Available.
- -
! IMI NORGREN / IMI BIMBA NOTICE! All Orders below $350 do not qualify for Factory Direct Shipping. (This includes Expedite/Red Request Orders) All IMI Norgren/IMI Bimba Orders below this amount will be brought in to an AHE facility and then shipped.
- -
Lincoln SKF Expedite Shipping Request Orders must be in before 11:30 AM EST. Same day shipping is not guaranteed.
- -
Nachi America Expedite Shipping Request Orders for UPS shipping must be in before 2:00 PM EST, 11AM EST for Fed-Ex Shipping. Same day shipping is not guaranteed.
- -
Please Review Below:
Please Notice: Item(s) in our (AHE) stock that qualify usually ship out the same day as long as the order is received before 1:00 PM EST (Monday-Friday), orders received after 1:00 PM are not guaranteed same-day shipment. Orders received after 1:00 PM EST on Friday usually ship the following Monday. ( Stock is not Guaranteed - Please Request Quote or call for availability if urgent) If you have questions regarding stock availability please call us at 1-800-277-4466 before placing an order.
In Stock: The item is in stock at our warehouse and qualifies to usually ship out the same day as long as the order is placed before 1:00 PM EST. Same day shipping is not guaranteed.
Factory Stock: The item may be available from one of our support factory warehouses. Most items generally ship within a few days as long as the item is in stock. STOCK IS NOT GUARANTEED. Many items do not qualify for factory direct shipping. If no stock is shown that means the factory could be out of stock, please call for the lead time. Lincoln SKF Expedite request orders must be in before 11:30 AM EST. Same day shipping is not guaranteed.
Call to Check Availability: The item is listed as generally available to order from one of our supporting warehouses, STOCK IS NOT GUARANTEED. If a rush item is needed, please call and check the item lead time before placing an order.
Out of Stock: Item is discontinued, back-ordered, or limited stock is available. Please call to check stock availability.
Order Shipping: Orders with multiple items generally ship as complete order unless otherwise specified. Items not in stock at time of order may take extended time to process and ship. Same day shipping is not guaranteed.
Order Cancellation: Items not kept as our Regular Stock are considered Special Order or Non-Stock items. Please note that once an order is placed, it may not always be possible to cancel the order.
Returns and Refunds: Please notice, some items may not be refundable or returnable. All Cylinders, Electrical Components and Excess Inventory items are not returnable/refundable. Shipping/Freight charges are not refundable. 15% or more Re-Stock Fee May Apply. Please contact us before placing an order if this is of concern.
C.O.C. & Conformity/Compliance: As We Do Not Export, certain certificates such as Certificate of Conformity may not be available or offered.
Shipping Areas: Please be advised, We Cannot Export and Cannot ship to California. Must ship to other USA states.

Description

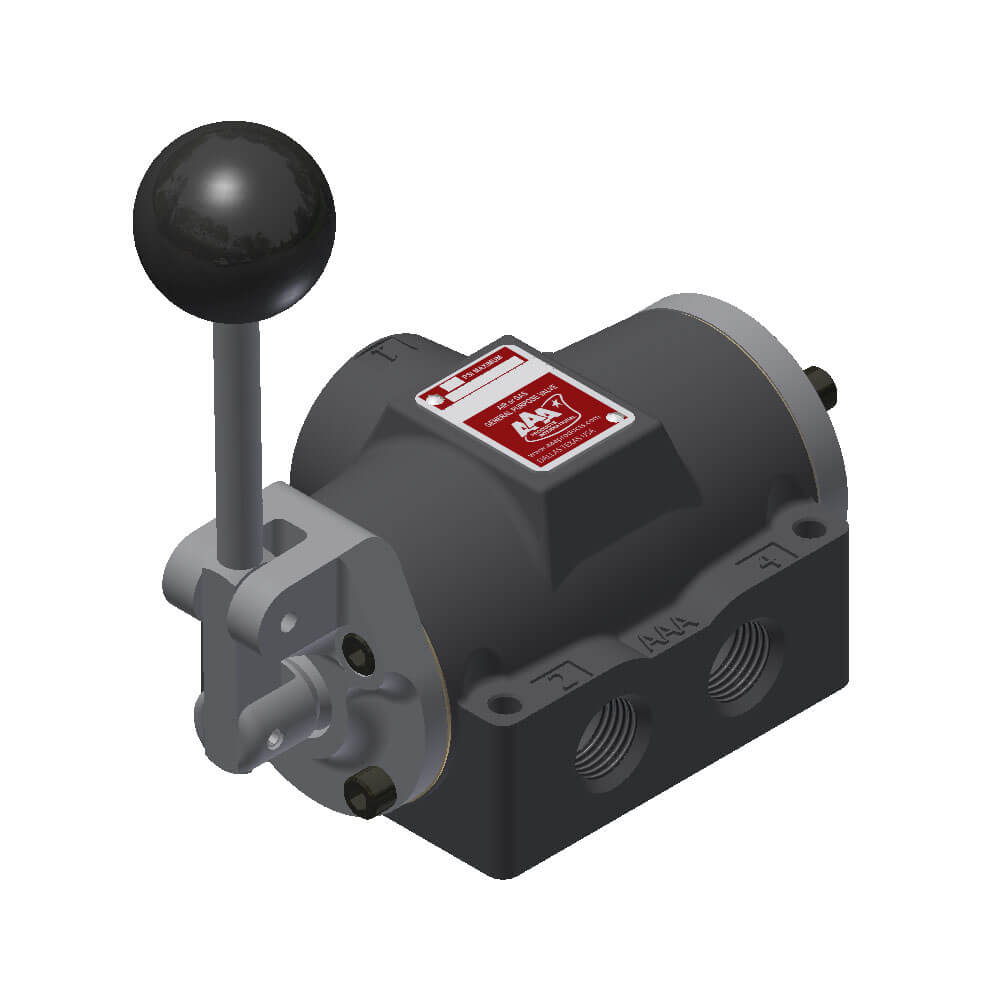

HY4 Manual Lever Valve AAA Products

Data for HY4

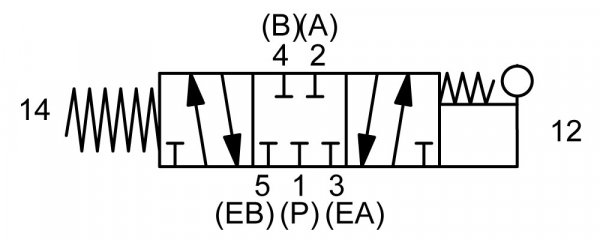

The HY4 is a 1/2″ NPTF side ported, 3 position, closed center spool, spring centered, lever/hand operated valve. The internal spool is shifted by moving the handle, 16 lbs is required to shift the spool against the spring. The internal spool is spring returned to center when the lever is released. Greater port pressures may require greater shifting force.
Pressure: 15 to 250 psi on the main body of the valve.
Vacuum: The five main ports can be operated on industrial vacuum to 28″ Hg, based on a 30″ barometer.
Temperature: -20°F to 250°F. Caution: If it is possible that the ambient temperature may fall below freezing, the medium must be moisture free to prevent internal damage or unpredictable behavior.
Mounting: The valve can be mounted in any orientation.
O-Rings: Buna-N.
Materials: Black anodized 356-T6 aluminum body, hard anodized aluminum spool, A380 aluminum end caps, steel lever, composite gaskets, steel fasteners.
Flow: 215 SCFM, 5.0 Cv
Repair Kit: ERKV-4
3-Way or 5-Way: While this valve is basically 4-way, it can be used for 5-way service by using ports 2 or 4 as an inlet, or 3-way service by plugging the unused port 2 or 4.
Fluid Media: Soft seal models are made for air, vacuum, and gases compatible with component materials. They should not be used with liquids.
Weight: 3.7 lbs ± 5%.

Details

Weight 3.7 lbs
Dimensions 6 × 6 × 6 in
